Model:

XT750PLUS

Wheel Size:

26inch

Color:

Black-Green/Black-Yellow/Black-Blue

Frame:

6061 aluminum alloy full suspension frame

Handelbar Sets:

6061 aluminum alloy,31.8*650mm

Fork:

Aluminum shoulder oil spring suspension large front fork

Variable speed

27 speed

Shifting Lever:

Shimano 2010

Front Derailleur

KANGYUE

Rear Derailleur:

Shimano M370

Cranksets:

Prowheel aluminum alloy crank square hole 24-34-42T

Freewheel:

SUNSHINE 14-32T

Chain:

KMC 9s

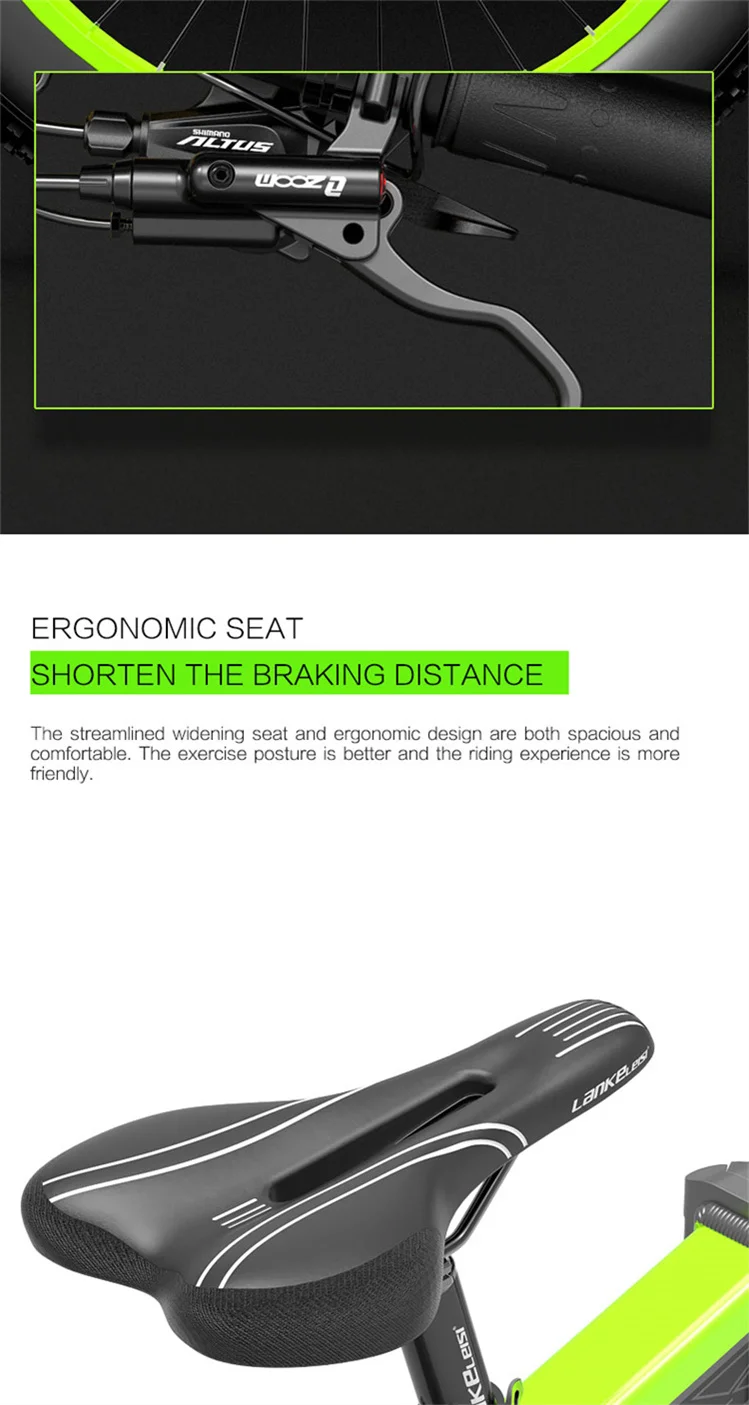

Brake:

ZOOM H875 power-off hydraulic disc brake

Rim

Aluminum alloy wheels

Tire:

CHAOYANG 26*4.0

Net Weight:

28.5kg

Carrying weight:

180kg

Applicable height

175-195cm

Electric configuration:

Mileage:

Electric mode 50-60 km/auxiliary mode 100-120 km

(After being fully charged, the load is 60kg, the temperature is 25 ℃, and the test is conducted at 20km/h. The actual measurement is the average speed on a flat road surface)

PAS mode (5 Shifts) Range 100-120KM

Riding mode:

Pure electric mode Range 50-60KM

Pure Human Riding

Maximum speed:

38-45km/h

Front light

LED Powered by battery

Gradeability:

35°

Battery:

48V 17.5AH Lithium battery

Charger:

48v 3a charger

charging time:

4-5h

Motor:

48v 1000w rear drive brushless motor, waterproof grade IP54

Motor torque:

95 Nm

meter

S700 LCD meter, Integrated setting function, display speed, battery level, mileage, etc., waterproof level: IP54

Power assist Sensor :

12-point Holzer-intensive speed sensor

Wire connector:

All cables are Waterproof Integrated wires
